Insulating joints
PN16-25 bar Ansi 150

For mainline sectioning

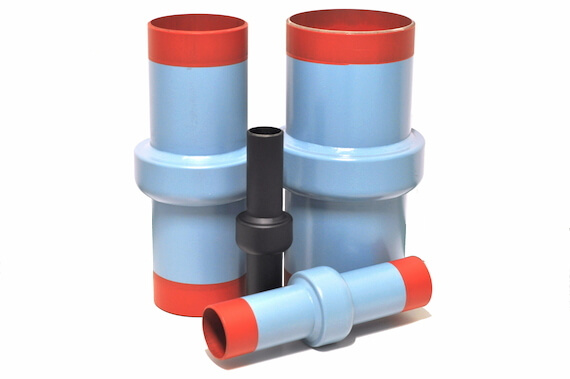

Usually ready in stock from DN 3/4“ to DN 16", the PROCHIND® insulating joints for mainline Pn 16-25 are normally produced in diameters from 3/4“ to 56" with bevelled ends and/or flanged.

On request FAP is able to produce PROCHIND® insulating joints up to 82“ diameter, operating pressure up to 250 bar / 25 Mpa, operating temperature up to 200°C / 392°F.

SUITABLE FOR:

WATER

GAS

HYDROCARBONS

Technical specifications

  • Manufatured and tested: UNI-CIG 10285

  • Max operating pressure: 25 bar / 2,5 Mpa

  • Test pressure: 38 bar / 3,8 Mpa

  • Max operating temperature: 70°C / 158°F

  • Electrical resistance in air at 1000V d.c.: > 5Mohm

  • Dielectric test: 3000 V

Materials

  • Pipe pups: steel UNI 7088/API 5L/ASTM/UNI

  • Main body: forged A105/equivalent/ASTM/UNI

  • Insulating rings: polycarbonate/G10/G11

  • Gaskets: NBR/VITON

  • Ends: bevelled API 5L and/or flanged

  • Coatings: epoxy resisns certificated for drikable water according to DM 174

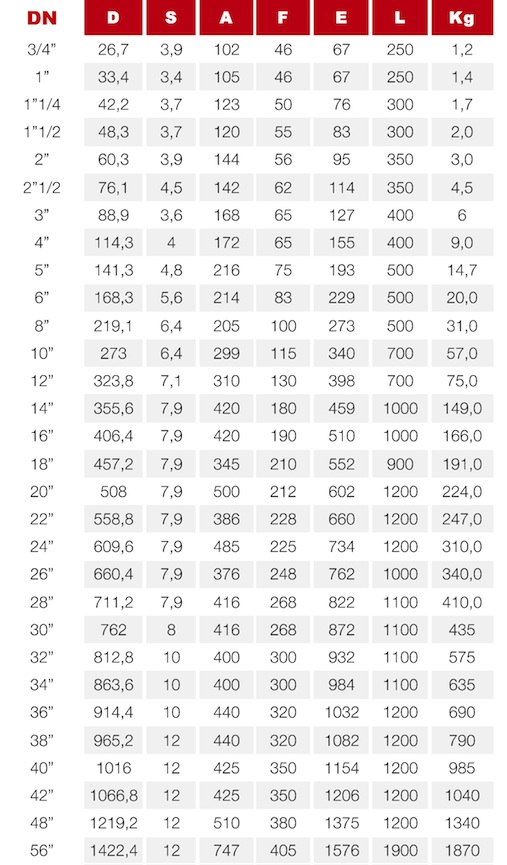

mij pn25 drawing

* Dimensions in mm are for information only and may change.

Download data sheet PN16 25
